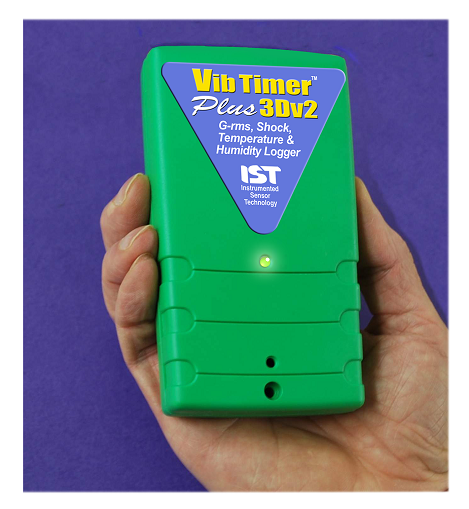

VibTimerTM Plus 3Dv2
Patent Pending
VibTimer-Plus™ 3Dv2 is a new, low cost 3-axis g-rms and peak shock logger for transportation and other industrial monitoring application. The device attaches to your shipment or machine and records g-rms vibration level information over long time periods along with exact date/time of all measurements.
Highlights:
- 3-axis g-rms vibration logging over user selectable time windows
- Peak-g shock recording (Max) over user selectable time windows
- Max/Min temperature and humitity logging over time windows
- Time Window selections from 1 min to 24 hours
- Active LED indicator lamp
- 3+ month battery life user-replacable
- Wireless Blue-Tooth PC data communications
- Very simple to setup & install
- Data imports to excel
- Small Size and Weight
- Low Cost
The new VibTimer-Plus™ 3Dv2 provides 3-axis acceleration level documentation of both shock & vibration environments for periods up to six months. The instrument computes and logs g-rms over user selectable, contiguous time windows, along with the actual (Max) peak-shock reading registered over the same time window, for each x, y, and z measurement axis. This provides the user with a complete characterization of the acceleration level environment over extended periods of time. In addition the unit logs max and min temperature and humidity for each time window.
Applications:
- Carrier Handling Quality Evaluation and Comparison
- Shippment Monitoring
- Pallets, Ocean Containers, ISO Containers, Crates
- Rail Cars
- Transformers, Fuel Cells, Large Machines, Semiconductor Fab & More
- Medical Imaging Equipment
- Aircraft Turbulence, Hard Landing
- Ordanance & Munitions
- Ride Quality Measurements
- Fleet Handling Measurements
- Industrial Machinery Monitoring
- Large Machine Vibration Monitoring
- Remote Machine Operational History Documentation
| Full Scale Measurement Range: | 16g, tri axial |
| Accuracy: | 5% |
| Maximum number of g-rms Vibration Readings: | 10,000 |
| Maximum number of Peak-G shock Readings: | 10,000 |
| Time Windows Selection Options: | 1, 10, 20 min; 1, 3, 6, 12, 24 hr |
| Digital Sampling Time Resolution: | 10 msec |
| Frequency Resopnse: | DC-40Hz |
| Temperature Measurement Range: | -40 to +160 deg F |
| Humidity Measurement Range: | 0 to 100% |
| Operational Temperature Range: | -40 to +160 deg F |
| Operational Battery Life: | 3+ months |
| Switches: | (1) On/Off; (2) REC/COM on bottom |
| Size: | 4.9" x 2.9" x 0.9" |
| Wieght: | 5.6 oz |
| Enclosure: | Injection molded plastic |
| Mounting: | Three in-built mounting holes |
| Options: | Mag-Mount-STP/VTP magnetic mounting base Blue-Tooth STP/VTP wireless USB for PC (PC end) Case: STP/VTP weather/waterproof case |
